Overlap Sheet Pile
Pro-Tec Equipment's heavy-duty overlap sheeting is designed for shoring and bulkheading. Our Aluminum Overlap Sheet Pile is lightweight overlap sheet pile designed for use as a bulkhead for closing off any open sides of an aluminum trench shield.
Steel Overlap Sheet Pile Strong, durable, high-strength overlap sheeting
Steel Overlap Sheeting

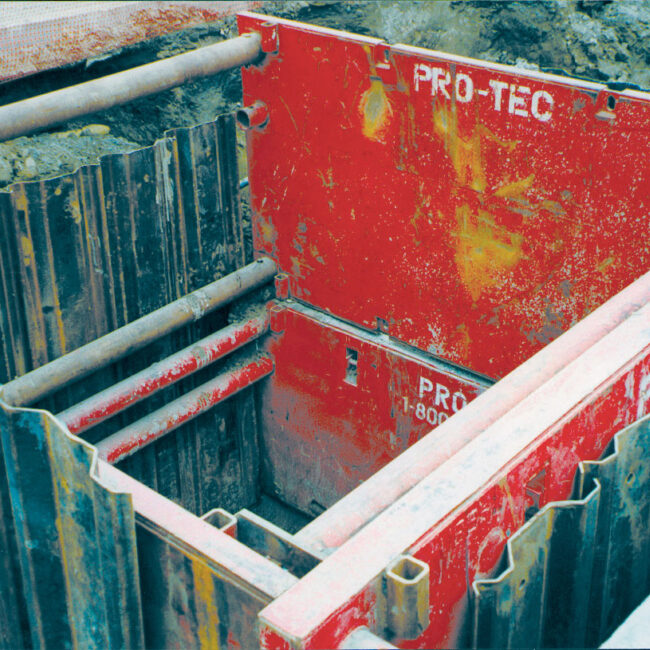

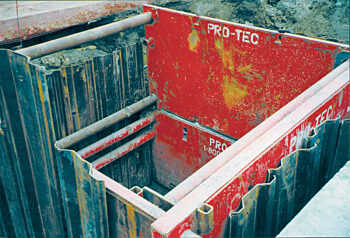

The Pro-Tec Equipment Steel Overlap Sheet Pile (non-watertight) is high strength and durable. It is designed to be ideal for shoring and bulkheading the ends or sides of trench shields, or for use anywhere locking sheets are not required.
- Strong, durable, high-strength
- Overlap design allows easy installation
| Model | Length | Weight |
|---|---|---|
| ft | lbs | |
| OLS-144 | 12 | 540 |
| OLS-168 | 14 | 630 |
| OLS-192 | 16 | 720 |
| OLS-216 | 18 | 810 |
| OLS-240 | 20 | 900 |
| OLS-288 | 24 | 1070 |
Engineering Data
| Area | A = 13.32 in2 |
| Moment of Inertia (Per Sheet) | I = 24.45in4 |
| Section Modulus (Per Sheet) | S = 12.83in3 |
| Radius of Gyration (Per Sheet) | R = 1.355 in |
| Yield Strength | Fy = 50,000#/in2 |
Consult registered professional engineering for site specific design prior to use.
Aluminum Overlap Sheet Pile Lightweight overlap sheet pile
Aluminum Overlap Sheet Pile
Pro-Tec Equipment’s Aluminum Overlap Sheet Pile (non-watertight) is a lightweight overlap sheet pile. It is designed to be used as bulkheading for closing off any open sides of an aluminum trench shield.
- Easily transported
- Overlap design allows easy installation
| Model | Length | Weight |
|---|---|---|
| ft | lbs | |
| AOLS-60 | 5 | 16 |
| AOLS-72 | 6 | 19 |
| AOLS-96 | 8 | 25 |
| AOLS-120 | 10 | 31 |
| AOLS-144 | 12 | 37 |
Engineering Data
| Area | A= 2.871in2 |
| Moment of Inertia (Per Sheet) | I = 0.689in4 |
| Section Modulus (Per Sheet) | S = 0.994in3 |
| Radius of Gyration (Per Sheet) | R = 0.490in |
| Yield Strength | Aluminum (6061-T6) |
Consult registered professional engineering for site specific design prior to use.
