Lightweight Aluminum Vertical Shores

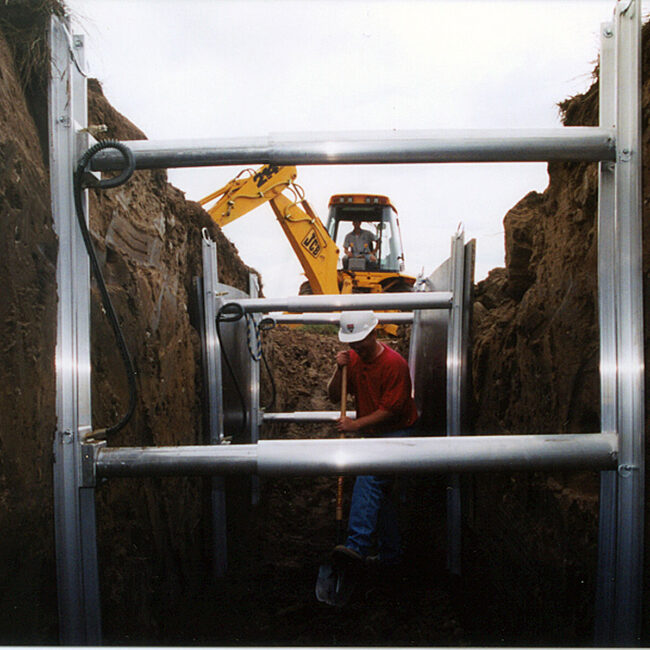

Pro-Tec Equipment's lightweight aluminum vertical shores are exceptionally strong, durable, portable and versatile. Strength is achieved with a high-yield aluminum construction and cylinder pads are mounted flush, providing even load distribution on side rails. The one-piece cylinder extensions can be installed easily on site to accommodate a variety of trench widths and a hinged design allows for fast knock-down and transport. Cylinder oversleeves are standard and bleed-off ports eliminate over-extension of cylinders to increase safety.

Installation Quick, easy, simple way to shore a trench

Installation is Fast, Easy and Safe

Position shore at edge of trench. Connect hydraulic hose line to fitting.

instal1

Drop shore into trench at desired height.

instal2

Pump to minimum pressure of 750 psi. Disconnect hose from fitting using release tool.

instal3

Removal

Release hydraulic shoring fluid at fitting using release tool.

instal4-1

Pull shore assembly from trench using both release and removal hook.

instal5

Complete shore assembly folds flat for portability to next location.

instal6

Charts Standard & Heavy-Duty chart

Standard & Heavy-Duty chart

Standard Metric
Rail Length Cylinder Width Standard Duty Weight Heavy Duty Weight
ft in lbs lbs
1.5 17 - 27 PVS-1.5-27 20 PVH-1.5-27 28
1.5 22 - 36 PVS-1.5-36 24 PVH-1.5-36 30
1.5 28 - 46 PVS-1.5-46 26 PVH-1.5-46 32
1.5 34 - 55 PVS-1.5-55 28 PVH-1.5-55 34
1.5 40 - 64 PVS-1.5-64 30 PVH-1.5-64 40
1.5 52 - 88 PVS-1.5-88 36 PVH-1.5-88 44
3.5 17 - 27 PVS-3.5-27 44 PVS-3.5-27 50
3.5 22 - 36 PVS-3.5-36 50 PVH-3.5-36 54
3.5 28 - 46 PVS-3.5-46 59 PVH-3.5-46 62
3.5 34 - 55 PVS-3.5-55 60 PVH-3.5-55 66
3.5 40 - 64 PVS-3.5-64 68 PVH-3.5-64 74
3.5 52 - 88 PVS-3.5-88 76 PVH-3.5-88 82
5 17 - 27 PVS-5-27 54 PVH-5-27 62
5 22 - 36 PVS-5-36 60 PVH-5-36 66
5 28 - 46 PVS-5-46 64 PVH-5-46 72
5 34 - 55 PVS-5-55 70 PVH-5-55 78
5 40 - 64 PVS-5-64 76 PVH-5-64 85
5 52 - 88 PVS-5-88 86 PVH-5-88 92
7 17 - 27 PVS-7-27 64 PVH-7-27 78
7 22 - 36 PVS-7-36 70 PVH-7-36 82
7 28 - 46 PVS-7-46 74 PVH-7-46 90
7 34 - 55 PVS-7-55 80 PVH-7-55 100
7 40 - 64 PVS-7-64 88 PVH-7-64 106
7 52 - 88 PVS-7-88 98 PVH-7-88 110
8 17 - 27 - - PVH-8-27 90
8 22 - 36 - - PVH-8-36 94
8 28 - 46 - - PVH-8-46 98
8 34 - 55 - - PVH-8-55 100
8 40 - 64 - - PVH-8-64 110
8 52 - 88 - - PVH-8-88 118
12 17 - 27 - - PVH-12-27 132
8 22 - 36 - - PVH-12-36 138
8 28 - 46 - - PVH-12-46 146
8 34 - 55 - - PVH-12-55 152
8 40 - 64 - - PVH-12-64 162
8 52 - 88 - - PVH-12-88 176
16 17 - 27 - - PVH-16-27 174
16 22 - 36 - - PVH-16-36 184
16 28 - 46 - - PVH-16-46 196
16 34 - 55 - - PVH-16-55 202
16 40 - 64 - - PVH-16-64 216
16 52 - 88 - - PVH-16-88 234

One piece cylinder extension

Standard Metric
Normal Cylinder Range Range with Extension Description Model
in in
17 - 27 28 - 38 Pin-on Extension PEX 27-11
17 - 27 39 - 49 Pin-on Extension PEX 27-22
17 - 27 50 - 60 Pin-on Extension PEX 27-33
22 - 36 33 - 47 Pin-on Extension PEX 36-11
22 - 36 44 - 58 Pin-on Extension PEX 36-22
22 - 36 55 - 69 Pin-on Extension PEX 36-33
28 - 46 43 - 61 Pin-on Extension PEX 46-15
28 - 46 58 - 76 Pin-on Extension PEX 46-30
28 - 46 73 - 91 Pin-on Extension PEX 46-45
34 - 55 52 - 73 Pin-on Extension PEX 55-18
34 - 55 70 - 91 Pin-on Extension PEX 55-36
34 - 55 88 - 109 Pin-on Extension *PEX 55-54
40 - 64 61 - 85 Pin-on Extension PEX 64-21
40 - 64 82 - 106 Pin-on Extension *PEX 64-42
40 - 64 96 - 120 Pin-on Extension *PEX 64-56
52 - 88 76 - 112 Pin-on Extension *PEX 88-24
52 - 88 94 - 130 Pin-on Extension *PEX 88-42
52 - 88 108 - 144 Pin-on Extension *PEX 88-56

* Denotes Steel Oversleeves

Manhole Braces

Manhole Brace

Manhole Braces

Designed to shore square, rectangular, and irregular shaped excavations, the Pro-Tec Equipment Manhole Braces bridge the gap between vertical hydraulic shoring and the  Pro-Brace Hydraulic Framing system.

The Pro-Tec Equipment Manhole Braces create a clear, unobstructed working area, ideal for manhole and vault installations, as well as municipal work.  The Manhole Braces can be easily transported to and from the job-site and are quickly assembled.

Features:

  • Steel Box Tubing
  • 4-Way hose bridle
  • Lift eyes on all corners
  • Able to be pressurized with the Standard Pro-Tec Equipment Plastic Pump Can
  • Certified by a Registered Professional Engineer

Manhole Brace Chart

Standard Metric
Model Min. Span Max Span Depth of Cut* B-Soils Depth of Cut* C-60 Soils Depth of Cut* C-80 Soils Depth of Cut* B-Soils Depth of Cut* C-60 Soils Depth of Cut* C-80 Soils
ft ft ft ft ft ft ft ft
4 On Center Spacing 4 On Center Spacing 4 On Center Spacing 3 On Center Spacing 3 On Center Spacing 3 On Center Spacing
2MB 4-5 5 8 25 20 10 25 25 12
2MB 4-6 6 9 25 20 10 25 25 12
2MB 4-7 7 10 25 20 10 25 25 12

*PSF (pounds per square foot) ratings indicate maximum shield capacities. Depths are based on B, C and C-80 soil types as described in OSHA’s 29 CFR Part 1926 Subpart P, October 31, 1989 with Type B not exceeding 45 PSF per foot of depth, Type C not exceeding 60 PSF per foot of depth and Type C-80 not exceeding 80 PSF per foot of depth. Determine actual soil pressure and consult manufacturers' tabulated data prior to each use.

Job site photos are strictly intended for general product information only and may not comply with all applicable safety standards. Always refer to manufacturers’ serialized specific tabulated data, O.S.H.A. 29 CFR 1926 Subpart P for excavations and all applicable safety standards prior to each use
